Commercial Supply High Quality Screw Juice Extractor / Industrial Cold Press Juicer For Fruits And Vegetables

1.0 Sets
MOQ
$1,388.00(1 - 4 Sets) $1,320.00(5 - 9 Sets) $1,298.00(>=10 Sets)
가격
Commercial Supply High Quality Screw Juice Extractor / Industrial Cold Press Juicer For Fruits And Vegetables
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: United Kingdom, United States, Italy, Germany
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: Motor
Model Number: DRB-0.5
Voltage: 380V
Power: 3000
Dimension(L*W*H): 800*830*380 mm
Weight: 90 KG
Warranty: 2 years
Application fields: Commercial catering, Fruit processing plant, Vegetable processing plant, Beverage Factory
Machinery Function: Froshly Squeezed Juice
Raw material: Fruit, Vegetables
Output product name: vegetable and fruit juices
Key Selling Points: Multifunctional
Product name: DRB-0.5T screw juice extractor
Processing Types: fruit vegetable etc
Capacity: 0.5T/h
Diameter of the screw: 83mm
Power of extracting motor: 1.5Kw
Power of crushing motor: 1.5Kw
Filter: 0.5mm
Machine size: 1050*400*1320mm
기본 정보
Model Number: DRB-0.5
결제 및 배송 조건
Packaging Details: Export Wooden Packing
Supply Ability: 20 Unit/Units per Month
제품 설명
Product Description

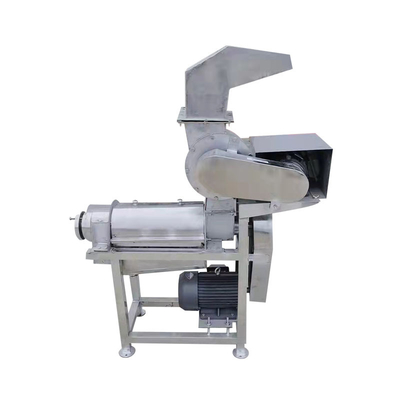

DRB-0.5T screw juice extractor
DRB-0.5T screw juice extractor is widely applied for the automatic screw juice extracting for tomatoes, ginger, garlic or celery, etc., and processes, including the juice extracting and the solid discharging, are completed automatically.
All contact parts are made of stainless steel 304, and the machine material can be customized.

1.When having the juice extracting for orange (After the peeling), grapes, monkey peach, mulberry fruit, waxberry or honey peach (After the pitting), etc., those kernels, seeds or skins can be separated.
2.When having the juice extracting for tomatoes, peppers or celeries (After the cutting), those fibers can be separated.

Features:

1.Advanced design, compact structure, beautiful and tidy.

2.3.2There are two parts: Crusher and the juice extractor. And processes of crushing, juice extracting and the solid discharging are completed automatically.

3.With the tapered screw, the working efficiency is high, and the juice extracting rate is high.

4.High working efficiency, low noise, and there is no pollution.

5.All contact parts are made of stainless steel 304.
Details Images

Machine structure:

1.The machine is composed of the front support, crusher, spiral, filter, juice collector, rear support and the solid collector, etc.
2.The left end of the main shaft is supported in the rolling bearing pedestal, and the right end is supported in the bearing pedestal of the hand wheel.
3.The spiral is driven by a pair of triangle belt wheels, and then the motor is driven.
4.The triangle frame is installed on the main shaft, and the pulping plate is on the triangle frame.
5.The sieve, the funnel and the solid outlet are installed on the lower support.
6.The whole bracket is connected by hinges, can be opened, so the juice extracting situation can be checked.

Working principle:

1.After fruits or vegetable is crushed, are put into the hopper.
2.Along the discharging direction, the bottom diameter of the spiral become bigger, while the screw pitch becomes smaller.
3.When fruits or vegetables are pushed, because the chamber becomes smaller, are extracted.
4.When it is viewed from the hopper, the main shaft rotates clockwise.
5.After the extracting, the juice passes through a filter, and then flows into the juice collector, which the waste solid will be discharged through the ring-shape gap.
6.When the gap size is changed, the discharging resistance can be changed. But if the gap is too small, although the juice extracting rate is increased, the juice quality is influenced
Some samples
Technical parameters
S.N.
Items
Specifications
1
Capacity
0.5T/h
2
Diameter of the screw
83mm
3
Power of extracting motor
1.5Kw
4
Power of crushing motor
1.5Kw
5
Filter
0.5mm
6
Machine size
1050×400×1320, mm
Related products
Our Company
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
